FIRE & GAS CONTROL SYSTEMS

Within industrial Fire & Gas protection applications there are few options offering the level of adaptability and control as the S81-HS that provides the following features:

• Addressable Fire Detection with APOLLO Devices and Loop certified SIL2
• Addressable Fire Detection with HOCHIKI AND NOTIFIER Devices
• Conventional Fire Detection System SIL2 or SIL3
• Explosive and Toxic Gas Detection 4-20mA devices SIL2 or SIL3
• Fire Extinguishment SIL2 & SIL3

The S81-HS panel is intended for the completely safe protection of high value technology, plant and equipment.

It is designed to meet the heaviest demands on functionality, reliability and availability. In particular, it is ideally suited to companies that operate in the field of energy production and handling, where it shows excellent resistance to electromagnetic disturbances.

The S81-HS panel looks like a safety PLC, but differs from this as it is certified by European bodies to perform the protection functions in compliance with the applicable regulations.

The panel is composed of specialised cards, installed in 483mm (19") racks, whose type and quantity depends on specific applications and customer requirements, i.e. on the plant/equipment to be protected.

The cards, which have their own "intelligence", are programmed for active/passive fire protection, gas detection, intruder alarm and control management.

Moreover, the S81-HS can interact with other panels of the same type, as well as with supervisory and SCADA systems, through both proprietary and standard protocols, such as Ethernet TCP/IP and Modbus.

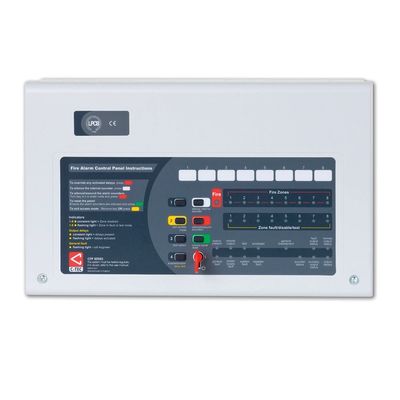

 Certified to EN54 parts 2, 4 and 13, C-TEC’s CFP 8 zone conventional fire alarm panel offers an array of user and installer-friendly features at a very competitive price.

Supplied in an attractive flush or surface mountable plastic enclosure, it includes eight detector zones, four conventional sounder circuits, class change and alert inputs, on-board fire and fault relays and combined keypad/keyswitch entry.

A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities. Comprehensive test and fault finding facilities are also provided.

Optional repeaters and relay expansion boards also available.

 LPCB certified to EN 12094-1 (the European standard for Fixed Firefighting Systems – Components for Gas Extinguishing Systems) and EN54-2/4, the EP203 three zone automatic extinguisher panel epitomizes quality, durability and reliability.

Specifically designed for use in areas housing expensive, dangerous or irreplaceable items of equipment, it features an intuitive 128 x 64 pixel display that gives clear and concise feedback to the user, installer and commissioning engineer. It has six monitored inputs (including hold & abort), a time stamped log, adjustable flood times and volt-free changeover relays for fire, local fire, 1st stage active, 2nd stage active, extractor fan and fault.

All of the panel’s electronics – apart from its powerful 3A EN54-4 switch mode PSU – are mounted on a detachable metal bridge plate for ease of installation. A wide range of ancillaries are also available including remote status units, hold-off & abort buttons, line terminators and relay boards.
